01
40 × 65 Three-Track Sliding Door
Three-track sliding door · 3.0 mm wall · 4+15A+4
View specification
Aluminium window & door systems — Foshan, China
Aluminium windows and doors, engineered to your drawings.
Jiuhua designs, develops and manufactures aluminium alloy system windows and doors — sliding, casement and thermal-break systems, configured to your opening schedule and delivered as a complete, ready-to-install package.
- Alloy 6063-T5 primary aluminium, A00 ingot
- Wall thickness 1.8 – 3.0 mm depending on system
- Thermal break PA66 nylon strip, isotherm design
- Glazing Xinyi single, laminated or insulated
Product families
Three systems, one workshop.
Every family is built on the same 6063-T5 aluminium platform, so a single project can be specified across sliding, casement and thermal-break openings without mixing suppliers.
01
Sliding Systems
Sliding doors and windows for wide openings, terraces and balconies — including the 40 × 65 three-track door, the six-track panoramic window and the 112 thermal-break slider.
Explore the family
02
Casement Windows
Side-hung casement windows with inside glazing, integrated fly screens and fixed guardrail options for residential and commercial elevations.
Explore the family
03
System Windows

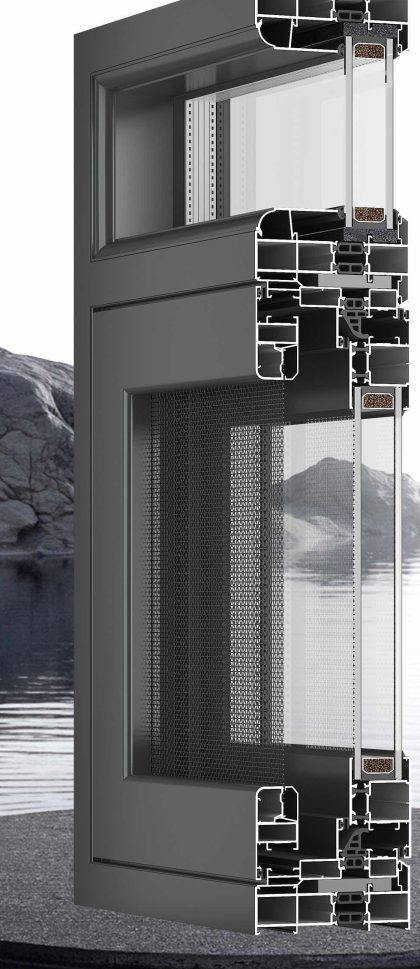

Thermal-break system windows with vertical isotherm design, PA66 nylon strips and 27 mm air chambers for cold, hot and noisy sites.
Explore the family
Who we are
A Foshan manufacturer of full-category aluminium systems.
Jiuhua designs, develops and manufactures aluminium alloy system windows and doors in Nanhai, Foshan — the profile, hardware and glazing cluster that supplies a large share of China’s window industry. The catalogue covers sliding, casement and thermal-break systems, from a 40 mm sash sliding door to a 115 mm multi-cavity system window.
Everything is produced in one workshop. That matters commercially: a project can be specified across every opening type through a single supplier, with one corner detail, one glazing standard and one packing list — instead of three sets of tolerances from three factories.
Buyers deal directly with the team that cuts, assembles and inspects the frames, and every system page on this site carries the profile, glazing and hardware specification exactly as it is manufactured.
- Own design & development System profiles, corner joints, gaskets and hardware choices are developed in-house for each family.
- Thermal-break engineering PA66 nylon strips, vertical isotherm layout and 20 / 27 mm air chambers on the 110 and 115 systems.
- Glazing specified for your climate From 4+15A+4 to 5+27A+5 double glazing, with Xinyi original glass as standard.
- Hardware you can service Homan, BOGO and Bojue stainless hardware, 304 stainless security mesh and Haida seal strips.
Selected systems
Specification-ready profiles.
01

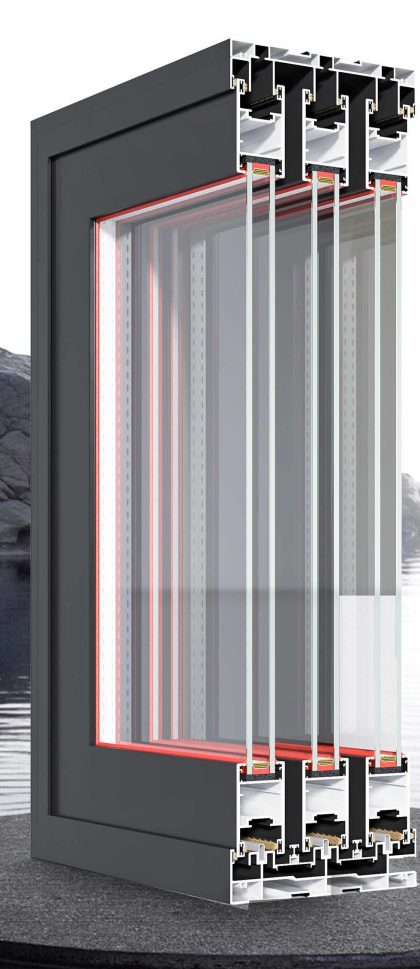

40 × 65 Three-Track Sliding Door
Three-track sliding door · 3.0 mm wall · 4+15A+4
View specification
02

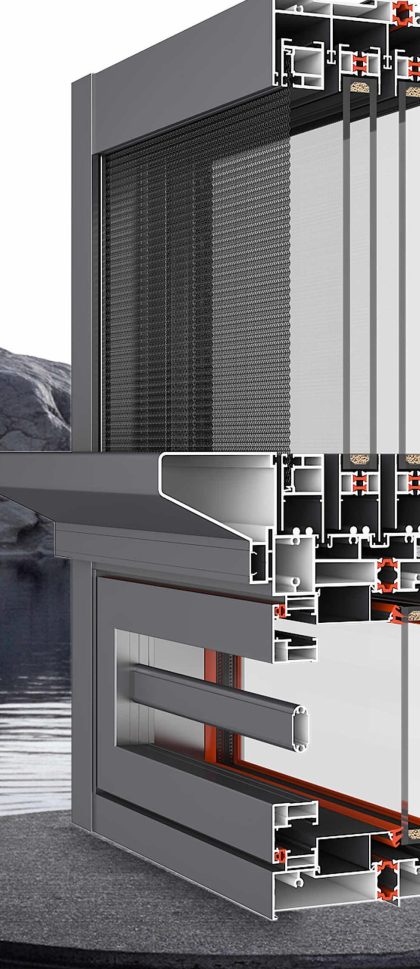

Six-Track Sliding Window
Six-track panoramic window · 2.0 mm wall · 304 mesh
View specification
03

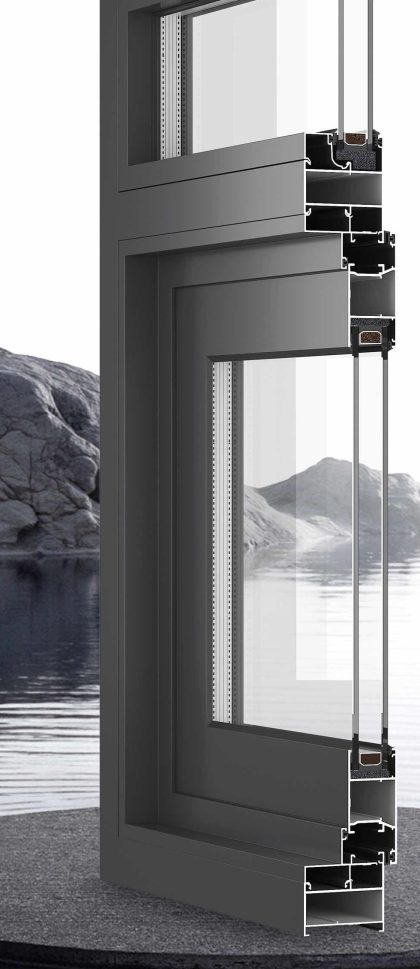

50 Series Casement Window
Casement window · 1.8 mm wall · 5+12A+5
View specification
04

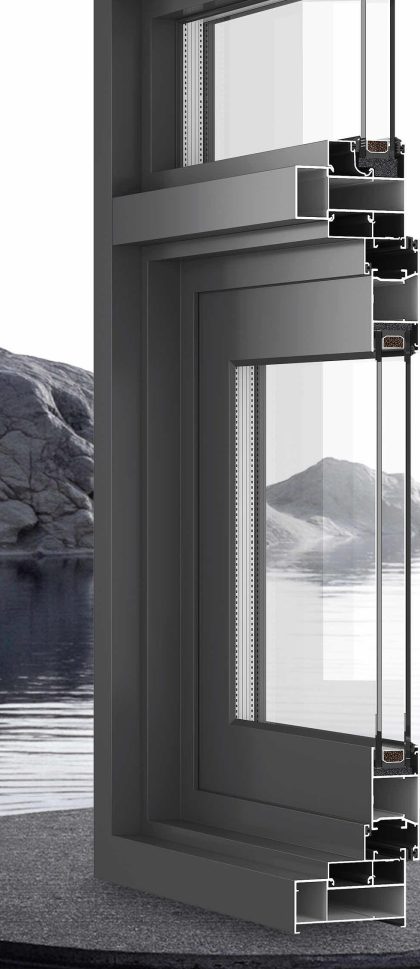

70 Series Casement Window
Casement window · 1.8 mm wall · 5+12A+5
View specification
How an order runs
From drawing to container.
Orders are produced against approved shop drawings, so the profiles, glazing and hardware that arrive on site match what was quoted.
-
01
Review
We read your drawings, opening schedule and performance targets, then flag anything that needs a different system.
-
02
Configure
Profile series, wall thickness, glazing build-up, hardware set and finish are fixed for each opening type.
-
03
Confirm
Section details and a hardware schedule are issued for approval before cutting starts.
-
04
Fabricate
Cutting, machining, corner assembly, glazing, sealing and hardware fitting at our Foshan workshop.
-
05
Inspect & pack
Dimensional check, opening and locking test, protective wrapping and export packing with a packing list.
Performance
Quoted performance, not marketing claims.
Values below are those stated in the Jiuhua product data sheets for the window systems, with the corresponding GB/T 7106 grade.
- K < 1.1 W/(m²·K) Thermal insulation GB grade 6
- ≥ 45 dB (Rw + C) Sound insulation GB grade 8
- ≥ 700 Pa Watertightness GB grade 7
- ≤ 1.5 m³/(m²·h) Air permeability GB grade 7
Applications
Built for the openings your clients actually specify.
01
Residential & villas
Casement and tilt windows, sliding doors to terraces, integrated fly-screen systems and balcony railings.
02Commercial & office
Large sliding panels, slim-frame glass partitions and system windows for offices and retail frontage.
03Hospitality & leisure
Quiet guest rooms, shaded balconies and floor-to-ceiling glazing with certified acoustic performance.
04Coastal & high-rise
Higher watertightness and wind-load figures, hidden drainage and 304 stainless mesh for exposed elevations.
Supply partners
Hardware and materials from named suppliers.
Jiuhua holds a long-term strategic cooperation agreement with VOTA hardware (Guangdong Weite Technology Co., Ltd.). Every system in this catalogue also names its glass, gasket and hardware source, so buyers can verify what they are getting before ordering.
- Xinyi glass
- Jiangyin Haida gaskets
- Homan hardware
- BOGO locks
- Bojue stainless hardware
- 304 stainless mesh
Start a project
Send your drawings and opening schedule — we will quote system by system.
Tell us the sizes, glazing, finish and destination port. Our engineers reply with a configuration proposal and a shipped price.
