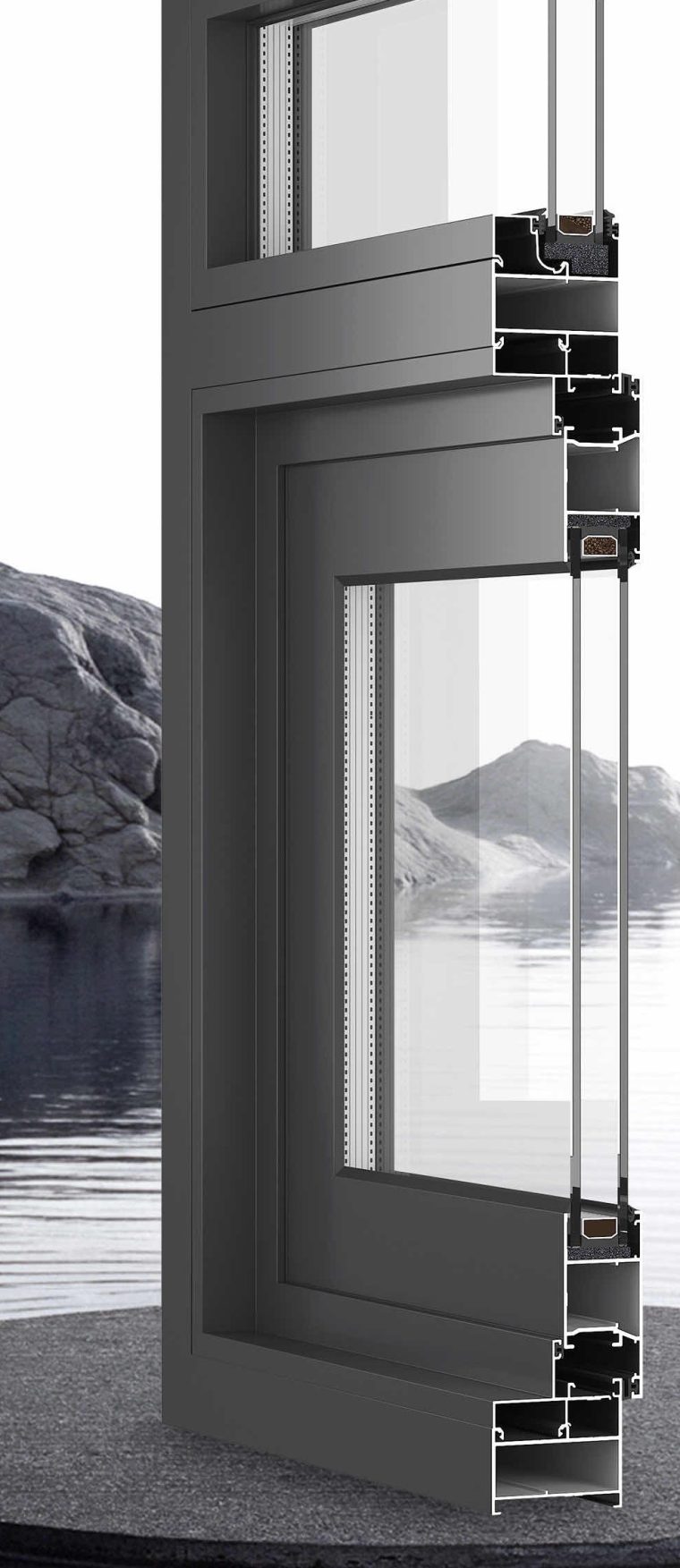

Profile section — glazing, thermal break and hardware positions as specified for this system.
50 Series Casement Window
Model 50
A 50 series aluminium casement window with a 1.8 mm wall, one-piece corner keys and Bojue stainless hardware — the standard choice for residential elevations.
- System type
- Side-hung casement window
- Profile alloy
- Foshan 6063-T5 primary aluminium
- Wall thickness
- 1.8 mm
- Glazing bead
- Square or arc section
- Corner joints
- One-piece corner key; top-pin key on the mullion
Not sure which system fits your opening? Talk to our team
Overview
The 50 series is the workhorse casement window: a 1.8 mm wall 6063-T5 profile with inside glazing, so the glass is fitted from the interior and cannot be removed from outside. That detail matters on ground-floor and accessible elevations.
The outer frame is assembled with a one-piece corner key and the mullion uses a top-pin corner key, which keeps the joint square and stops the transom drifting out of alignment after repeated opening. Glazing bead profiles are available as a square section or an arc section.
The window is glazed 5 + 12A + 5 with Xinyi original glass as standard and fitted with a full set of Bojue stainless steel hardware. A fixed guardrail and a three-section fly screen can be added to the same frame.
Key features
- Foshan 6063-T5 primary aluminium with a 1.8 mm wall
- Square or arc glazing bead
- One-piece corner key on the outer frame
- Top-pin corner key on the mullion, so the joint stays square
- Inside glazing — single or double glass
- Fixed guardrail option with a three-section fly screen
Specifications
| System type | Side-hung casement window |
|---|---|
| Profile alloy | Foshan 6063-T5 primary aluminium |
| Wall thickness | 1.8 mm |
| Glazing bead | Square or arc section |
| Corner joints | One-piece corner key; top-pin key on the mullion |
| Glazing | 5 + 12A + 5 Xinyi original glass (single glazing optional) |
| Hardware | Full set Bojue stainless steel |
| Screen | Three-section fly screen option |
| Guardrail | Fixed guardrail option |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- Square or arc glazing bead
- Single or double glazing
- Fixed guardrail
- Three-section fly screen
