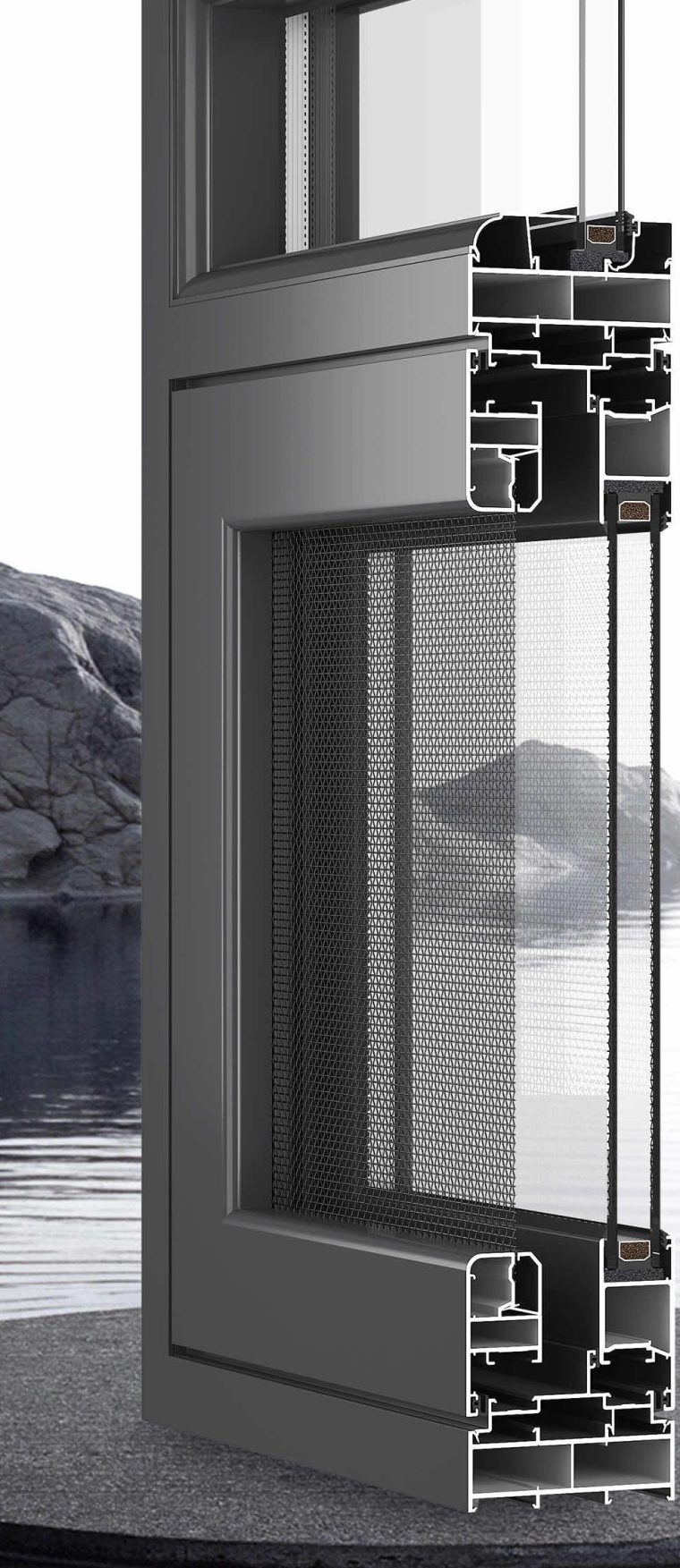

Profile section — glazing, thermal break and hardware positions as specified for this system.
85 Series Integrated Casement Window
Model 85
An 85 series casement window with the fly screen built into the frame — sash and frame sit flush inside and out, with inside glazing and Bojue stainless hardware.
- System type
- Casement window with integrated fly screen
- Profile alloy
- Foshan 6063-T5 primary aluminium
- Thermal break
- Non-thermal-break system
- Glazing bead
- Square or arc section
- Glazing
- 5 + 12A + 5 Xinyi original glass, or single glazing
Not sure which system fits your opening? Talk to our team
Overview
The 85 series integrates the fly screen into the window frame instead of bolting a separate screen frame to the inside face. From both the interior and the exterior the sash and frame read as one flush plane, which is why it is used on elevations where a bolt-on screen would break the line.
Construction follows the casement family: one-piece corner key on the outer frame, top-pin corner key on the mullion, and inside glazing in single or double glass. Glazing is 5 + 12A + 5 Xinyi original glass, or single glazing where the climate allows.
This is a non-thermal-break system. Where a thermal break is required, specify the 110 or 115 system window instead.
Key features
- Foshan 6063-T5 primary aluminium
- Window and fly screen integrated in one frame
- Sash and frame flush inside and outside
- One-piece corner key on the outer frame
- Top-pin corner key on the mullion
- Inside glazing with a fixed guardrail option
Specifications
| System type | Casement window with integrated fly screen |
|---|---|
| Profile alloy | Foshan 6063-T5 primary aluminium |
| Thermal break | Non-thermal-break system |
| Glazing bead | Square or arc section |
| Glazing | 5 + 12A + 5 Xinyi original glass, or single glazing |
| Hardware | Full set Bojue stainless steel |
| Screen | Integrated into the frame |
| Guardrail | Fixed guardrail option |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- Single or double glazing
- Fixed guardrail
