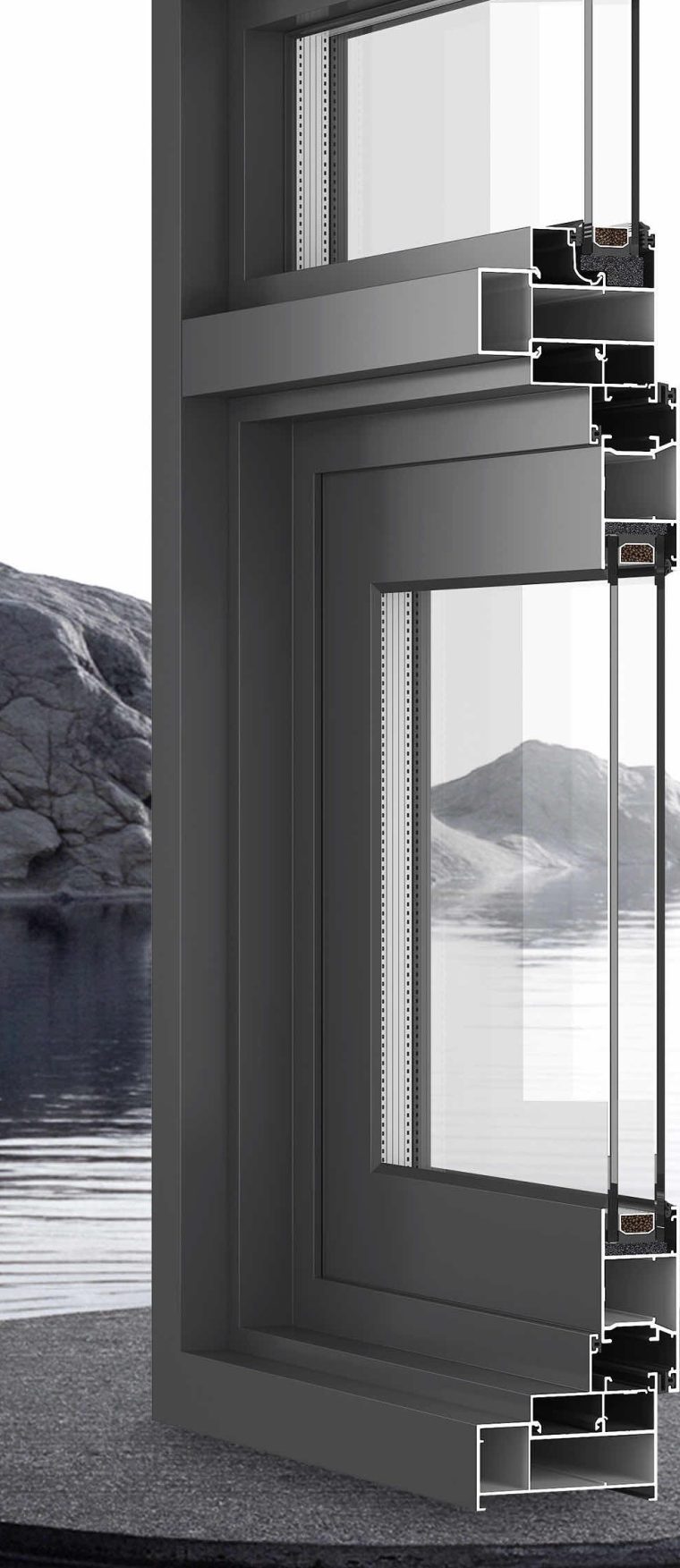

Profile section — glazing, thermal break and hardware positions as specified for this system.
70 Series Casement Window
Model 70
The 70 series casement window shares the 50 series detailing on a deeper 70 mm frame — more room for glass, gaskets and a deeper reveal.
- System type
- Side-hung casement window
- Profile alloy
- Foshan 6063-T5 primary aluminium
- Wall thickness
- 1.8 mm
- Frame depth
- 70 mm series
- Glazing bead
- Square or arc section
Not sure which system fits your opening? Talk to our team
Overview
The 70 series uses the same construction logic as the 50 series — inside glazing, one-piece corner keys and a top-pin mullion joint — on a deeper 70 mm frame. The extra frame depth gives more space for the glazing rebate and for the gasket line, and produces a deeper shadow line on the facade.
It is the specification most often chosen where the elevation needs a stronger frame presence than the 50 series but a thermal break is not required. Glazing is 5 + 12A + 5 with Xinyi original glass, and hardware is a full set of Bojue stainless steel.
Square or arc glazing beads, a fixed guardrail and a three-section fly screen are available on the same frame.
Key features
- Foshan 6063-T5 primary aluminium with a 1.8 mm wall
- 70 mm frame depth for a deeper glazing rebate
- Square or arc glazing bead
- One-piece corner key on the outer frame
- Top-pin corner key on the mullion
- Inside glazing, with fixed guardrail and fly-screen options
Specifications
| System type | Side-hung casement window |
|---|---|
| Profile alloy | Foshan 6063-T5 primary aluminium |
| Wall thickness | 1.8 mm |
| Frame depth | 70 mm series |
| Glazing bead | Square or arc section |
| Corner joints | One-piece corner key; top-pin key on the mullion |
| Glazing | 5 + 12A + 5 Xinyi original glass (single glazing optional) |
| Hardware | Full set Bojue stainless steel |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- Square or arc glazing bead
- Single or double glazing
- Fixed guardrail
- Three-section fly screen
