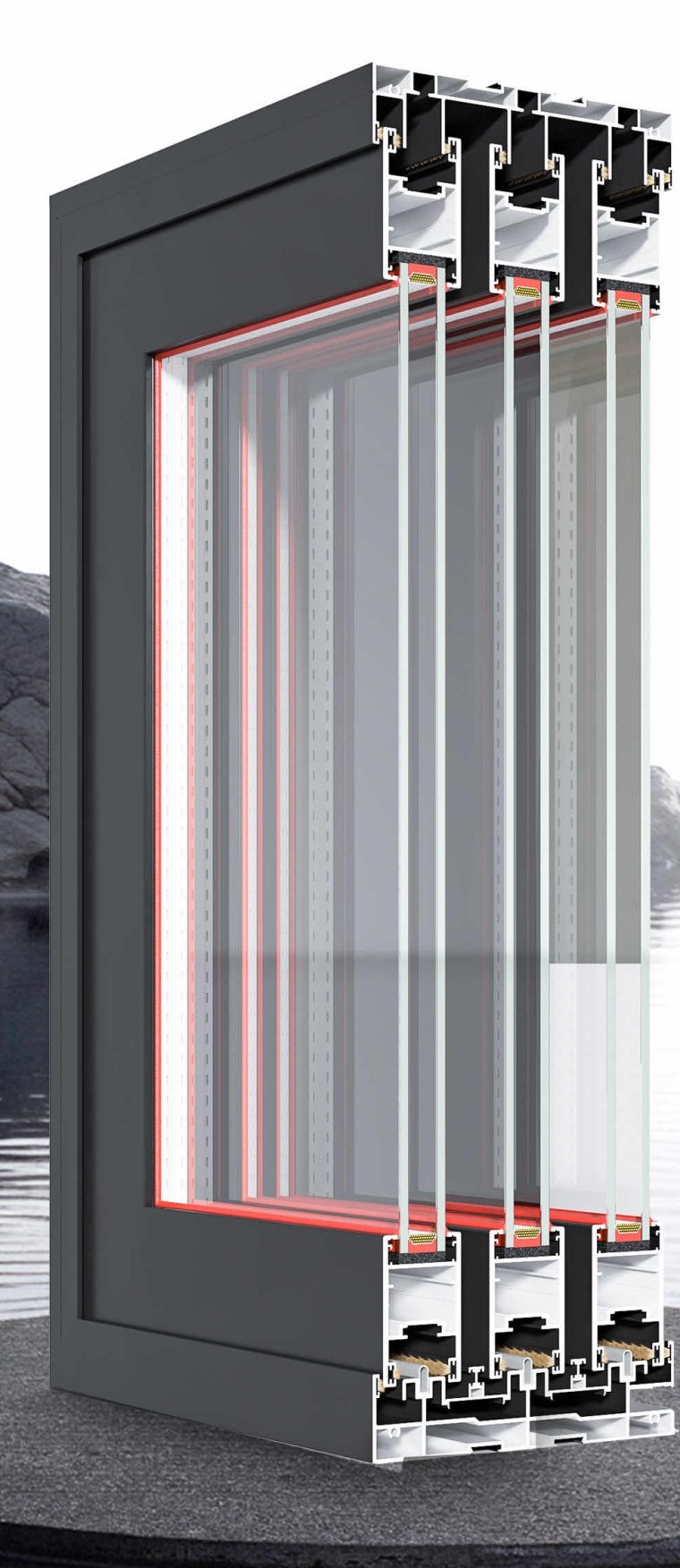

Profile section — glazing, thermal break and hardware positions as specified for this system.
40 × 65 Three-Track Sliding Door
Model 40 × 65
A heavy three-track sliding door on 6063-T5 primary aluminium with a 3.0 mm wall, one-piece bent hollow thermal strip and Xinyi 4+15A+4 glazing for wide terrace openings.
- System type
- Three-track sliding door
- Profile alloy
- Foshan 6063-T5 primary aluminium
- Wall thickness
- 3.0 mm (2.0 mm option)
- Frame occupancy
- 2-track 105 mm / 3-track 162 mm
- Sash section
- 40 × 65 mm
Not sure which system fits your opening? Talk to our team
Overview
The 40 × 65 is the widest-track door in the catalogue: a three-track sliding system designed for large terrace and balcony openings where two or three panels have to stack behind one another. The frame uses Foshan 6063-T5 primary aluminium with a 3.0 mm wall, so the tracks keep their section under the weight of full-height glass.
The hollow aluminium strip is bent as one piece rather than assembled from short sections, which removes the joints where water and dust collect. Glazing is 4 + 15A + 4 Xinyi original glass, and the door is supplied with a BOGO single-bar lock as standard.
Two frame depths are available — a 105 mm two-track frame and a 162 mm three-track frame — and the bottom rail can be specified as a high track or a level track, depending on whether you want a flush threshold or a stronger water barrier.
Key features
- Foshan 6063-T5 primary aluminium with a 3.0 mm profile wall
- Two-track 105 mm or three-track 162 mm frame occupancy
- Black hollow aluminium strip bent as one piece
- Yimei upper positioning wheel and lower roller set
- High-track drainage and wind-proof design
- 40 × 65 mm sash section; high track or level track
Specifications
| System type | Three-track sliding door |
|---|---|
| Profile alloy | Foshan 6063-T5 primary aluminium |
| Wall thickness | 3.0 mm (2.0 mm option) |
| Frame occupancy | 2-track 105 mm / 3-track 162 mm |
| Sash section | 40 × 65 mm |
| Bottom rail | High track or level track |
| Glazing | 4 + 15A + 4 Xinyi original glass |
| Lock | BOGO single-bar lock, standard |
| Roller system | Yimei upper positioning wheel, lower roller |
| Drainage | High-track drainage and wind-proof design |
Options & variants
- 2.0 mm or 3.0 mm profile wall
- High-track or level-track bottom rail
- Two-track or three-track frame
Warranty & delivery notes
- Glazing build-up and hardware set are confirmed on the approved shop drawing before production.
