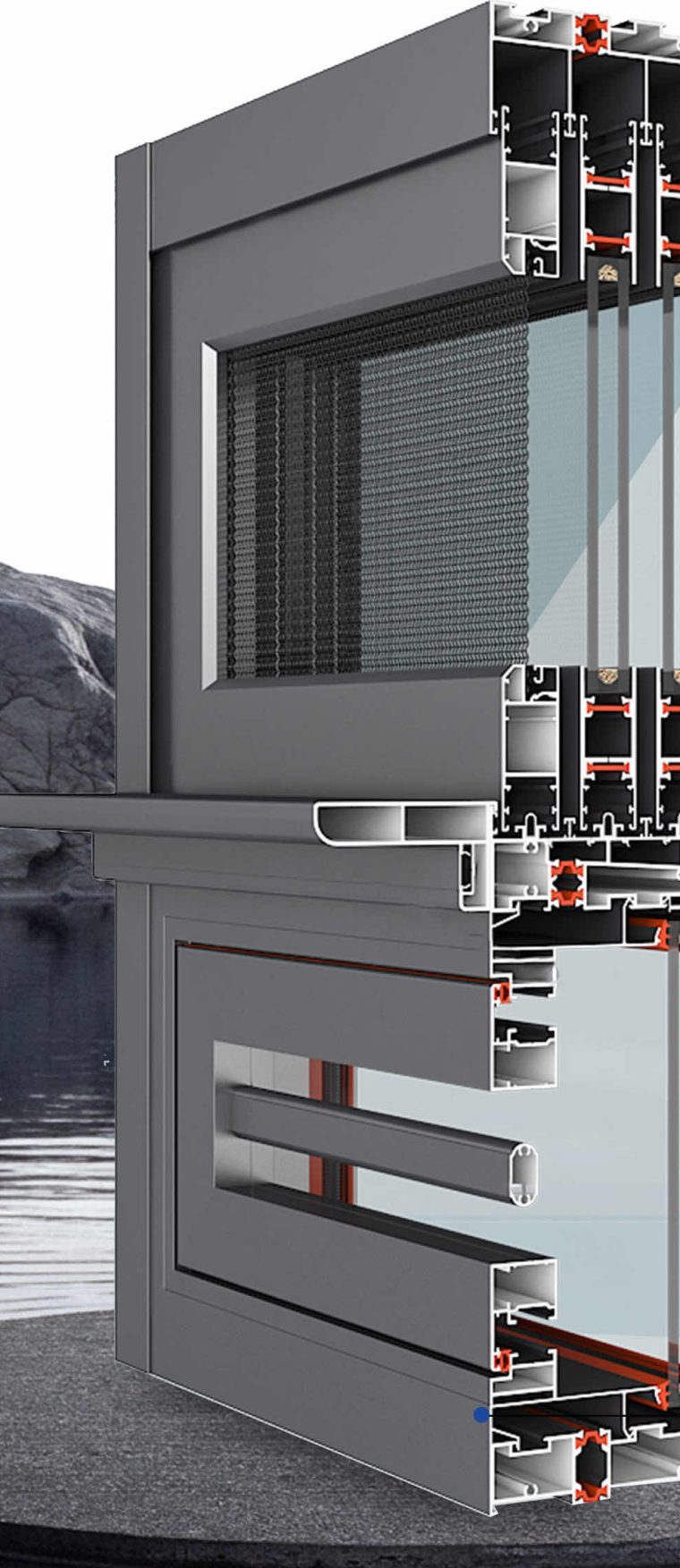

Profile section — glazing, thermal break and hardware positions as specified for this system.
112-2.0 Thermal-Break Sliding Window
Model 112-2.0
A 112 series thermal-break sliding window with a 20 mm thermal strip, hidden drainage and 304 stainless mesh, glazed 5+9A+5.
- System type
- Thermal-break sliding window
- Profile alloy
- Foshan 6063-T5 primary aluminium
- Wall thickness
- 2.0 mm
- Thermal break
- 20 mm strip
- Glazing
- 5 + 9A + 5 double hollow glass
Not sure which system fits your opening? Talk to our team
Overview
The 112 is the thermal-break version of the sliding window. A 20 mm thermal strip separates the inner and outer profile chambers, so the frame does not conduct heat straight through from the room to the facade — the difference in surface temperature on the inner face is noticeable on cold mornings.
Drainage is hidden inside the frame rather than expressed as a visible spout on the face, and the fixed frame section can be fitted with an openable guardrail where a balcony barrier is required.
Glazing is 5 + 9A + 5 double hollow glass with a full set of automatic touch-lock hardware. Both arc and square glazing beads are available.
Key features
- Foshan 6063-T5 primary aluminium with a 2.0 mm wall
- 20 mm thermal-break strip on the glass sash
- Fixed frame section can be fitted with an openable guardrail
- Arc or square glazing bead
- Hidden drainage outlets
- 304 stainless steel fly screen
Specifications
| System type | Thermal-break sliding window |
|---|---|
| Profile alloy | Foshan 6063-T5 primary aluminium |
| Wall thickness | 2.0 mm |
| Thermal break | 20 mm strip |
| Glazing | 5 + 9A + 5 double hollow glass |
| Hardware | Full set automatic touch lock |
| Mesh | 304 stainless steel |
| Drainage | Hidden drainage |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- Arc or square glazing bead
- Openable guardrail on the fixed frame
