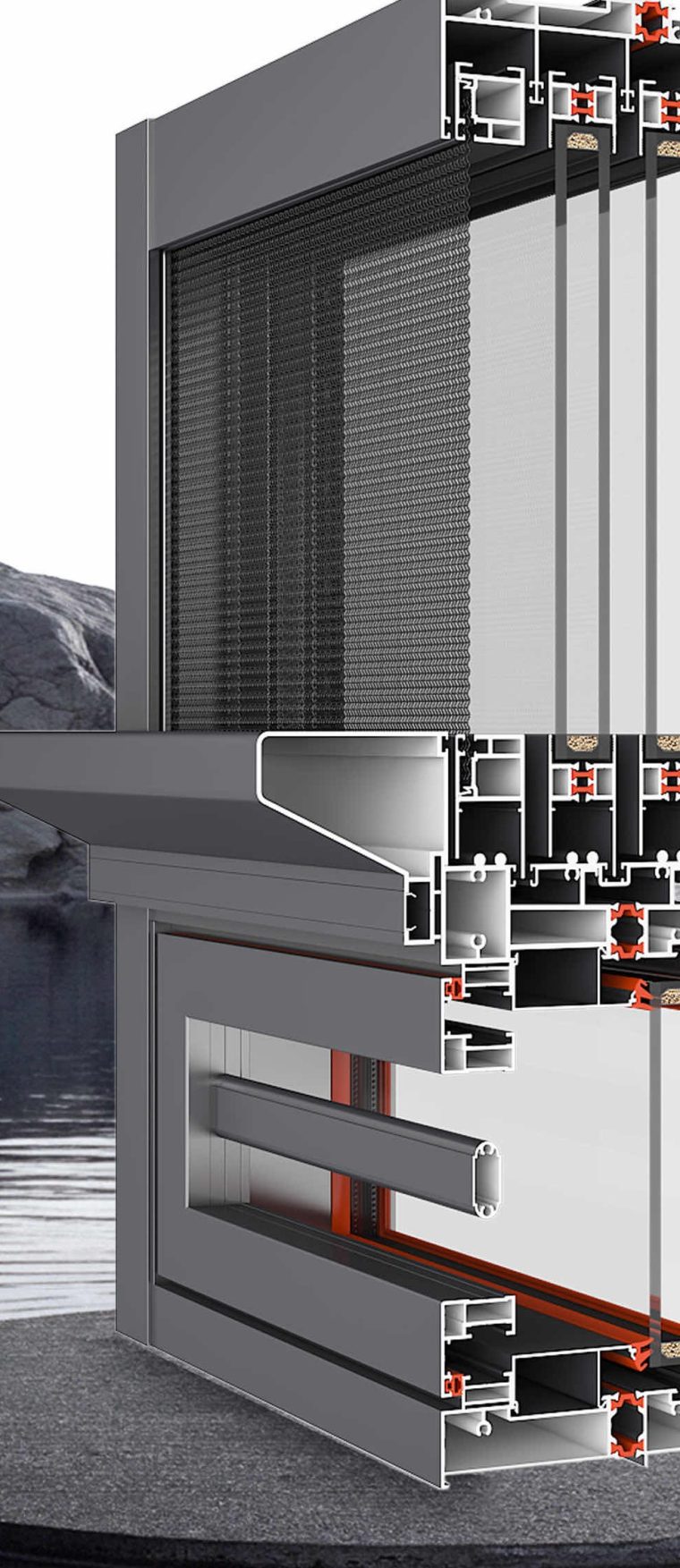

Profile section — glazing, thermal break and hardware positions as specified for this system.
Six-Track Sliding Window
Model Six-track
A six-track panoramic sliding window with 45° corner joints, an openable guardrail and drying rack, and 304 stainless security mesh — built for enclosed balconies.
- System type
- Six-track sliding window
- Profile alloy
- Foshan 6063-T5 primary aluminium
- Wall thickness
- 2.0 mm
- Corner joint
- 45° spliced sash profiles
- Glazing
- 5 + 15A + 5 Xinyi original glass
Not sure which system fits your opening? Talk to our team
Overview
The six-track window is a panoramic sliding system: six rails share one frame so that the panels stack into a narrow bay, leaving the rest of the opening completely clear. It is the system we recommend for enclosed balconies and full-width living room glazing where the view matters more than the frame.
Sash profiles are spliced at 45° instead of butted, which keeps the corners square under load, and the sash edges are kept narrow to reduce the visible frame line. The 304 stainless steel mesh gives security and insect protection in one plane; a high-definition mesh is available where a finer weave is preferred.
Both the guardrail and the clothes-drying rack can be opened, so the balcony stays usable without removing the safety barrier. Rollers run on a double-track, double-wheel design for higher panel weights.
Key features
- Foshan 6063-T5 primary aluminium with a 2.0 mm wall
- 45° spliced sash profiles for stiffer corner joints
- Narrow sash edges for a wider clear view
- Openable guardrail and openable clothes-drying rack
- 304 stainless steel security mesh; high-definition mesh optional
- Double-track, double-wheel rollers for higher panel loads
Specifications
| System type | Six-track sliding window |
|---|---|
| Profile alloy | Foshan 6063-T5 primary aluminium |
| Wall thickness | 2.0 mm |
| Corner joint | 45° spliced sash profiles |
| Glazing | 5 + 15A + 5 Xinyi original glass |
| Lock | Fully automatic touch lock, standard |
| Mesh | 304 stainless steel |
| Accessories | Openable guardrail, openable drying rack |
| Rollers | Double-track, double-wheel |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- High-definition mesh instead of standard 304 mesh
- Openable or fixed guardrail
- Openable clothes-drying rack
