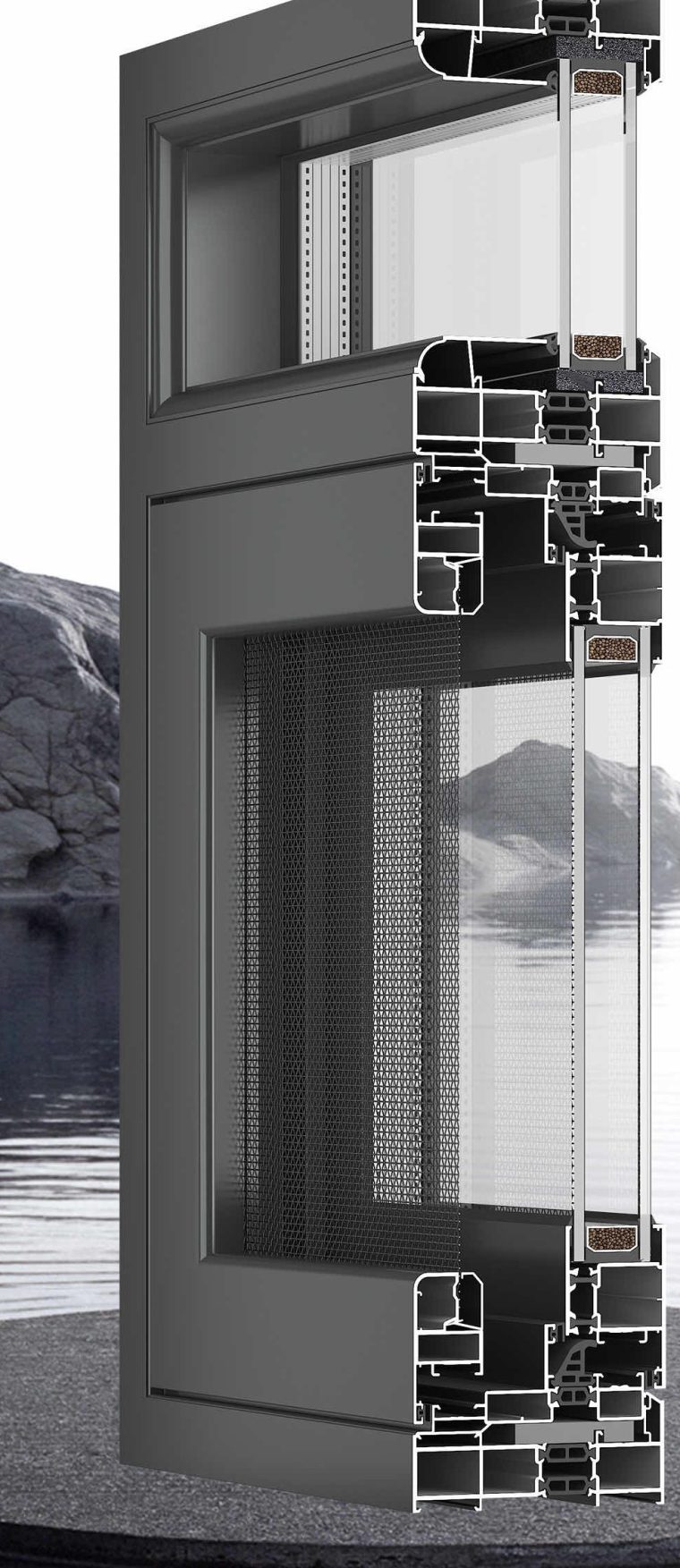

Profile section — glazing, thermal break and hardware positions as specified for this system.
Dinggu 110 System Window
Model 110
A 110 series thermal-break system window with vertical isotherm design, PA66 nylon strips, 5+27A+5 Xinyi glazing and Homan stainless hardware.
- System type
- Thermal-break system window
- Profile alloy
- 6063-T5 primary aluminium from A00 ingot
- Wall thickness
- 2.0 mm main frame
- Thermal break
- PA66 nylon strip, vertical isotherm layout
- Gaskets
- Jiangyin Haida
Not sure which system fits your opening? Talk to our team
Overview
The 110 system window is built on national-standard A00 aluminium ingot, extruded to 6063-T5 and drawn with a 2.0 mm main-frame wall. The thermal break is a national-standard PA66 nylon strip laid out on a vertical isotherm plane, so the inner and outer profiles are isolated along the full height of the frame rather than only at the sash.
Glazing is 5 + 27A + 5 Xinyi original glass. The 27 mm air chamber is what separates this system from a standard casement: it is the space that gives the window its insulation and its acoustic performance. Gaskets are Jiangyin Haida as standard, chosen for ageing resistance rather than lowest cost.
An arc glazing bead gives the reveal a softer, curved profile. The outdoor cavity has a retaining edge so that larger, heavier glass panels can be carried without the sash deflecting, and drainage runs through a floor-drain outlet rather than a face-mounted spout, so water leaves quickly and does not back up in a storm.
Key features
- National-standard A00 aluminium ingot, 6063-T5 primary aluminium
- 2.0 mm main-frame wall
- Vertical isotherm design for heat and sound insulation
- National-standard PA66 nylon thermal-break strip
- Arc glazing bead for a softer, curved reveal
- Outdoor cavity retaining edge for larger glass panels
- Jiangyin Haida gaskets as standard, more resistant to ageing
- Floor-drain drainage: fast discharge, no backflow in storms
Specifications
| System type | Thermal-break system window |
|---|---|
| Profile alloy | 6063-T5 primary aluminium from A00 ingot |
| Wall thickness | 2.0 mm main frame |
| Thermal break | PA66 nylon strip, vertical isotherm layout |
| Gaskets | Jiangyin Haida |
| Glazing | 5 + 27A + 5 Xinyi original glass |
| Hardware | Full set Homan stainless steel, no base handle |
| Glazing bead | Arc section |
| Drainage | Floor-drain outlet |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- Hardware sets to suit the opening type
- Glazing build-up confirmed per project
Warranty & delivery notes
- Gasket warranty: 20 years, as stated in the manufacturer product specification.
- Glass warranty: 10 years against fogging and self-shattering, as stated in the manufacturer product specification.
