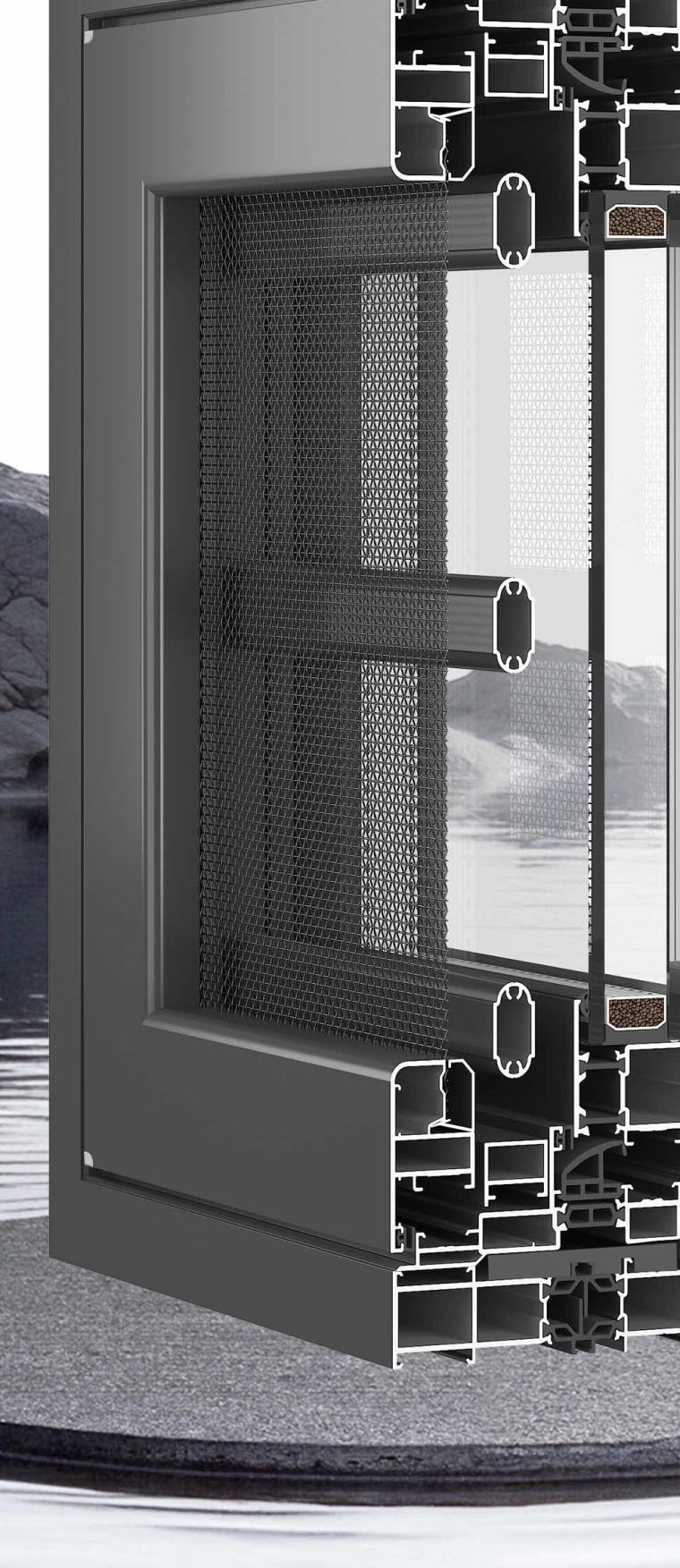

Profile section — glazing, thermal break and hardware positions as specified for this system.
115-2.0 Thermal-Break System Window
Model 115-2.0
The 115 system window adds a multi-cavity load-bearing frame and a closed-loop glazing bead to the 110 platform for exposed and high-wind elevations.
- System type
- Thermal-break system window
- Profile alloy
- 6063-T5 primary aluminium from A00 ingot
- Wall thickness
- 2.0 mm main frame
- Structure
- Multi-cavity load-bearing frame
- Thermal break
- PA66 nylon strip, vertical isotherm layout
Not sure which system fits your opening? Talk to our team
Overview
The 115 is the most heavily built system in the catalogue. The frame uses a multi-cavity load-bearing structure on a 2.0 mm wall, with the same vertical isotherm thermal-break layout and PA66 nylon strips as the 110.
What changes is the closure detail: the glazing bead runs as a closed loop rather than an open profile, which makes the sash stiffer and keeps the glazing line sealed when the facade takes wind pressure. Combined with the floor-drain outlet, that detail is the reason this system is specified on exposed elevations and taller buildings.
Glazing is 5 + 27A + 5 Xinyi original glass, gaskets are Jiangyin Haida, and hardware is a full set of Homan stainless steel without a base handle.
Key features
- National-standard A00 aluminium ingot, 6063-T5 primary aluminium
- 2.0 mm main-frame wall with a multi-cavity load-bearing structure
- Closed-loop glazing bead for storm resistance
- Vertical isotherm design with PA66 nylon strips
- Jiangyin Haida gaskets as standard
- 5 + 27A + 5 Xinyi original glass
- Full set Homan stainless steel hardware, no base handle
- Floor-drain drainage without backflow
Specifications
| System type | Thermal-break system window |
|---|---|
| Profile alloy | 6063-T5 primary aluminium from A00 ingot |
| Wall thickness | 2.0 mm main frame |
| Structure | Multi-cavity load-bearing frame |
| Thermal break | PA66 nylon strip, vertical isotherm layout |
| Glazing bead | Closed-loop section |
| Gaskets | Jiangyin Haida |
| Glazing | 5 + 27A + 5 Xinyi original glass |
| Hardware | Full set Homan stainless steel, no base handle |
| Drainage | Floor-drain outlet |
Performance
Figures as quoted in the Jiuhua product data sheet for this system. Grades refer to GB/T 7106.
Options & variants
- Hardware sets to suit the opening type
- Glazing build-up confirmed per project
Warranty & delivery notes
- Gasket warranty: 20 years, as stated in the manufacturer product specification.
- Glass warranty: 10 years against fogging and self-shattering, as stated in the manufacturer product specification.
